Cable Braiding Machine can braid copper wire , aluminum wire, Steel wire , any kind of metal wire can braid in this Wire Braiding Machine .May kind of cable make from this braiding machine camera cable . TV cable lift cable , space cable , high power cable much more. |
|
|

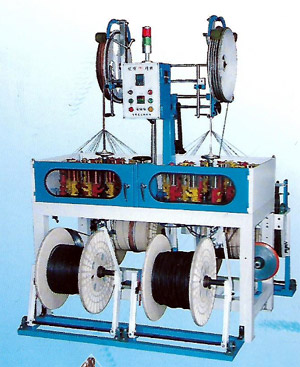

| Cable Braiding Machine |
| The machine with one motors and 4 heads can produce 4 cables at the same time, which can be well applied to the production of earphone wire, aluminium - tinsel cord, high temperature wire, surgical suture and other filament wires. |
| Model |
GB24#B |
| Head |
2/Combined transmission |
| Spindel |
24*2 |
| Motor Power |
220V 1.5KW * 1 |
| Max Speed of Impeler |
360RPM |
| Max Dia of Core Thread |
26mm |
| Max Dia of Thread Collector |
630mm |
| Scope of Braiding Density |
2-26
2-26 (Knots) |
| Max Output |
219m/h(5) * 2
219m/h (at the density of 5Knots) * 2 |
| Raw Material |
Brass wire, steel wire with plating copper, aluminium & Magnesium wire with plating steel, chemical fibre and so on. |
|
Wire winding machine can wind bobbin for wire braiding,1 to 12 ends wire,copper any metal. |
|
|

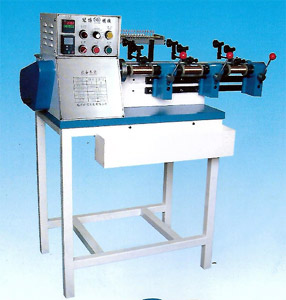

| Wires Winder |
| The machine is well organized and can be easily run, meanwhile, it adopts transducer and precised rolling rings drives so as to improove the doubling quality. This machine can be applied to doubling all kinds of wires. |
| Model |
GB200A |
| Head of Doubling Machine |
4/Combined transmission |
| Motor Power |
220V 0.55KW - 1.1 KW |
| Ways of Transversing |
By rolling rings traverse |
| Speed of Doubling |
0-3600RPM
|
| Ways of speed adjusting |
By Transducer, automatic stop unit for wire breaking |
|
|
|

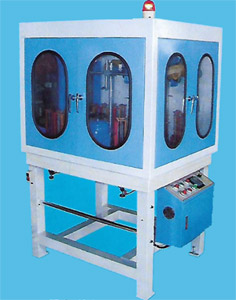

| Electric wire braiding machine |
| The machine with one motors and 4 heads which can be well applied to the production of earphone wire, aluminium - tinsel cord, high temperature wire, surgical suture and other fine braided wires. |
| Model |
GB16#-4 |
| Head |
4/Combined transmission |
| Spindel |
16*4 |
| Motor Power |
220V 0.75KW |
| Max Speed of Impeler |
360RPM |
| Special Electric Equipment |
Transducer, automatic stop unit for wire breaking |
|
|
|
| Ribbon Braiding machine (Traditional pitch adjusting) |
| This model specially designed for the rope industry with 1 motor and 4 heads adopts the transducer, automatic stop unit of wire or yarn breaking. For its small size, high speed, high output (Output is 12 times as much as that of the low speed braiding machine), It is the best choice for our customers. Meanwhile, we also supply the model with automatic wefting equipment which means no need of changing the gear to adjust Knots. |
|
|
|
| Ribbon Braiding machine (Automatic pitch adjusting) |
| The model with 1 motor and 4 heads is applied to braiding lace ribbon, elastics, respirator ribbon. There are two choices for our customers : Normal model and the model with automatic bobbin winding equipment. |
We offer wide range of machines such as Cable Braiding Machine, House Pipe Knitting Machine and Wires Winder Cable Braiding Machine,Wire Braiding Machine,House Pipe Knitting Machine,Ribbon Braiding machine
|
|
